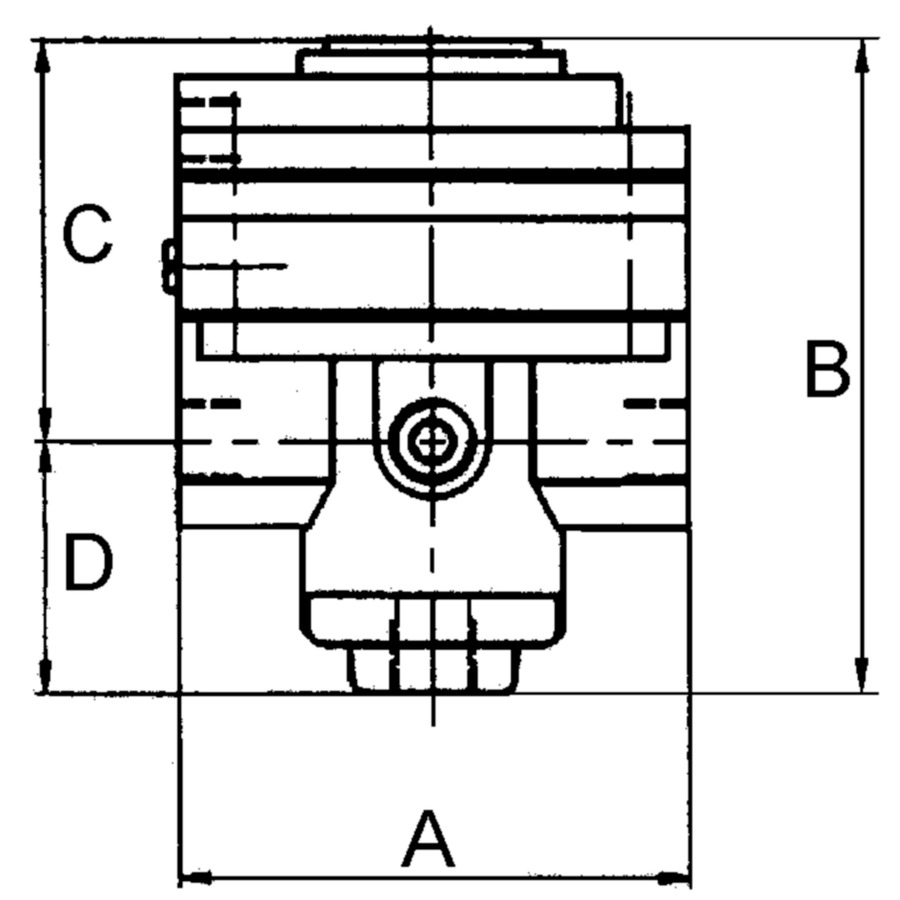

Название | Резьба | A | C | D | B | Действия |
---|---|---|---|---|---|---|
K-07250935 | G 1/2 | 82,0 | 64,5 | 43,5 | 108,0 mm |
Прочие данные только по запросу.Attention! A set of wearing parts cannot be supplied! These pressure regulators may only opened in the factory! The given flow rates are based on the following parameters: 3000 l/min: P1: 5 bar, P2: 3 bar, Δp ≤ 0,1 bar.
With high flow rate and large secondary relief port. Pneumatically controlled diaphragm pressure regulators with large secondary relief portfor applications requiring an extremely accurate working pressure, especially at high flow rates. We recommend our »multifix« series of pilot controllers.
1500 l/min: P1: 10 bar, P2: 7 bar, Δp ≤ 0.1 bar.Control air port G 1/8
