HMC 1-25 / HMC 1-35 Uniflex купить в Киеве. Категории Hansa-Flex

Варианты продукта: HMC 1-25 / HMC 1-35 Uniflex

We reserve the right to make technical changes without notice. Options are machine parts that can only be ordered while buying the machine.

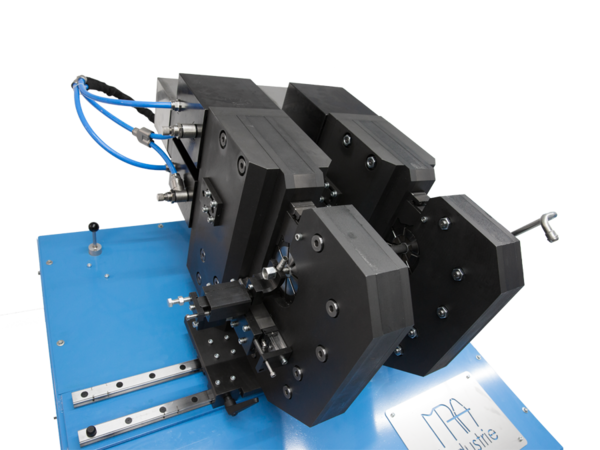

Press designed specifically for the production of automotive hoses. A good example for such a tailor-made solution is the

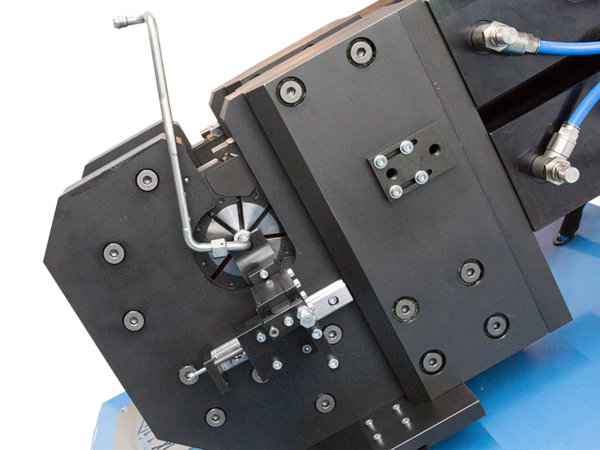

HMC 1-25 and the HMC 1-30 with patented C-shaped crimping tool designed for radial insertion of complex hose lines. This
special press is an ergonomically designed, low-noise machine that requires no lubrication. It has been specifically devised
for the production of hoses for the automotive industry, offering outstanding press forces and precision. With PFC and other
optional features, you can adjust the press force to process materials that are easily damaged, producing strong and lasting
connections without any need for gluing, screwing or welding.

Type of dies

239 HMC

ø mm	-mm-
6,8	38
9	38
10	38
12	38
14	38
16	38
17	38
19	38
20	38
22	38
24	38
26	38
28	38
30	38
31	38
32	38
34	38
36	38
38	38
40	38
44	38
47	38
50	38
54	38
57	38
62	38

Modell:	HMC 1-25
Crimp force (kN/Ton)	250 / 25
Greaseless
Control	Control C.2 + Touch
Industrial*	1"
Max. Crimp range	70 mm
Opening without dies	90 mm
Speed (mm/sec.) Close Crimp Open	30 5 50
Noise level (dBA)	80
Drive	4 kW
Oil	100 l
L x W x H Machine (mm	650 x 590 x 1700
Weight	320 Kg
штампованные/час	Calculate ►

Modell:	HMC 1-30
Crimp force (kN/Ton)	300 / 30
Greaseless
Control	Control C.2 + Touch
Industrial*	1"
Max. Crimp range	70 mm
Opening without dies	90 mm
Speed (mm/sec.) Close Crimp Open	30 5 50
Noise level (dBA)	80
Drive	4 kW
Oil	100 l
L x W x H Machine (mm	650 x 590 x 1700
Weight	320 Kg
штампованные/час	Calculate ►

ø mm	-mm-
6,8	38
9	38
10	38
12	38
14	38
16	38
17	38
19	38
20	38
22	38
24	38
26	38
28	38
30	38
31	38
32	38
34	38
36	38
38	38
40	38
44	38
47	38
50	38
54	38
57	38
62	38

ø mm	-mm-
6,8	38
9	38
10	38
12	38
14	38
16	38
17	38
19	38
20	38
22	38
24	38
26	38
28	38
30	38
31	38
32	38
34	38
36	38
38	38
40	38
44	38
47	38
50	38
54	38
57	38
62	38

HMC 1-25 / HMC 1-35 Uniflex

AutomotiveCrimper for Automotive hoses

Свойства: HMC 1-25 / HMC 1-35 Uniflex

First Class Advantages:

Описание изделия: HMC 1-25 / HMC 1-35 Uniflex

Варианты продукта: HMC 1-25 / HMC 1-35 Uniflex

Type of dies

239 HMC

ø mm	-mm-
6,8	38
9	38
10	38
12	38
14	38
16	38
17	38
19	38
20	38
22	38
24	38
26	38
28	38
30	38
31	38
32	38
34	38
36	38
38	38
40	38
44	38
47	38
50	38
54	38
57	38
62	38
