HM 660 PFC Uniflex купить в Киеве. Категории Hansa-Flex

Свойства: HM 660 PFC Uniflex

First Class Advantages:

Без смазки

Эргономичность

Тихая работа

Маркировка CE

2 года гарантии

Описание изделия: HM 660 PFC Uniflex

Modell:	HM 660 PFC
Crimp force (kN/Ton)	8000 / 800
Greaseless
Control	Control C.2 + Touch
SAE R 15 / 4SH* 1 piece fitting	3"
SAE R 15 / 4SH* 2 piece fitting	3"
Industrial*	10"
90° Elbows*	2"
Max. Crimp range	325 mm
Opening	+ 120 mm
Opening without dies	395 mm
Speed (mm/sec.) Close Crimp Open	15 2 15
Noise level (dBA)	69
Drive	18,5 kW
Oil	300 l
L x W x H Machine (mm	1400 x 1050 x 2470
L x W x H Power Unit (mm)	700 x 1160 x 1360
Weight	4200 Kg
штампованные/час	Calculate ►

Modell:	HM 665 PFC
Crimp force (kN/Ton)	6000 / 600
Greaseless
Control	Control C.2 + Touch
SAE R 15 / 4SH* 1 piece fitting	3"
SAE R 15 / 4SH* 2 piece fitting	3"
Industrial*	12" / 16"
90° Elbows*	2"
Max. Crimp range	450 mm
Opening	+ 180 mm
Opening without dies	580 mm
Speed (mm/sec.) Close Crimp Open	17 0,9 25
Noise level (dBA)	69
Drive	5,5 kW
Oil	300 l
L x W x H Machine (mm	970 x 1800 x 2400
L x W x H Power Unit (mm)	-
Weight	5200 Kg
штампованные/час	Calculate ►

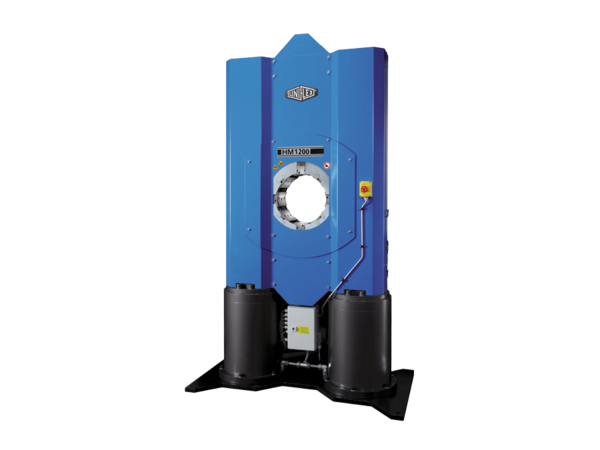

Modell:	HM 1200 PFC
Crimp force (kN/Ton)	12000 / 1200
Greaseless
Control	Control C.2 + Touch
SAE R 15 / 4SH* 1 piece fitting	3"
SAE R 15 / 4SH* 2 piece fitting	3"
Industrial*	10"
90° Elbows*	2"
Max. Crimp range	325 mm
Opening	+ 120 mm
Opening without dies	395 mm
Speed (mm/sec.) Close Crimp Open	11 1,5 11
Noise level (dBA)	69
Drive	18,5 kW
Oil	300 l
L x W x H Machine (mm	1400 x 1130 x 2660
L x W x H Power Unit (mm)	1100 x 1300 x 1500
Weight	4480 Kg
штампованные/час	Calculate ►

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

ø mm

-mm-

6,8

100

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
96	118
103	118
106	126
111	126
116	126
121	126
126	126
131	126

ø mm

-mm-

118

103

118

106

126

111

126

116

126

121

126

131

126

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
92	118
96	130
103	130
106	130
111	130
116	130
121	130
126	130
131	130
136	130
146	150
156	150
170	170
185	200
200	200
215	200
230	200
245	200
260	200

ø mm

-mm-

118

130

103

130

106

130

111

130

116

130

121

130

126

130

131

130

136

130

146

150

156

150

170

185

200

215

200

230

200

245

200

260

200

Crimp force (kN/Ton):	8000 / 800
Crimp range (mm):	325

Type of dies

239-xx

237L

246L

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
96	118
103	118
106	126
111	126
116	126
121	126
126	126
131	126

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
92	118
96	130
103	130
106	130
111	130
116	130
121	130
126	130
131	130
136	130
146	150
156	150
170	170
185	200
200	200
215	200
230	200
245	200
260	200

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
96	118
103	118
106	126
111	126
116	126
121	126
126	126
131	126

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
92	118
96	130
103	130
106	130
111	130
116	130
121	130
126	130
131	130
136	130
146	150
156	150
170	170
185	200
200	200
215	200
230	200
245	200
260	200

HM 660 PFC Uniflex

Isolatoren, Kabel, SeileCrimper for Isolators, Cables, ropes (Kopie 2)

Свойства: HM 660 PFC Uniflex

First Class Advantages:

Описание изделия: HM 660 PFC Uniflex

Варианты продукта: HM 660 PFC Uniflex

Type of dies

239-xx

237L

246L

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
96	118
103	118
106	126
111	126
116	126
121	126
126	126
131	126

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
92	118
96	130
103	130
106	130
111	130
116	130
121	130
126	130
131	130
136	130
146	150
156	150
170	170
185	200
200	200
215	200
230	200
245	200
260	200
