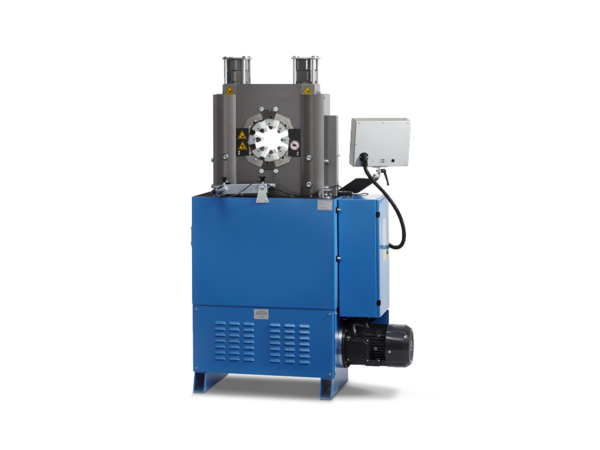

HM 380 PFC Uniflex

Isolatoren, Kabel, SeileCrimper for Isolators, Cables, ropes (Kopie 2)

Помощь специалиста:

(044) 205-38-70 (067) 353-07-08 Валерий (067) 605 91 82 Алексей (067) 551-34-37 Василий (067) 693-30-67 Татьяна (067) 627-62-77 Виктор

Свойства: HM 380 PFC Uniflex

First Class Advantages:

Без смазки

Эргономичность

Тихая работа

Маркировка CE

2 года гарантии

Описание изделия: HM 380 PFC Uniflex

Modell:	HM 380 PFC
Crimp force (kN/Ton)	3400/340
Greaseless
Control	Control C.2 + Touch
SAE R 15 / 4SH* 1 piece fitting	3"
SAE R 15 / 4SH* 2 piece fitting	3"
Industrial*	5" (6")**
90° Elbows*	3"
Max. Crimp range	165 mm
Opening	+ 70 mm
Opening without dies	215 (8") mm
Speed (mm/sec.) Close Crimp Open	23 1,6 33
Noise level (dBA)	62
Drive	5,5 kW
Oil	100 l
L x W x H Machine (mm	1200 x 600 x 1700
Weight	750 Kg
штампованные/час	Calculate ►

Варианты продукта: HM 380 PFC Uniflex

Crimp force (kN/Ton):	3400 / 340
Crimp range (mm):	165

As reliable classic machines, the HM3xx series unites all the outstanding properties of a production crimper.

Combining a convincingly solid construction with a high level of user friendliness, and long service life, the HM3xx set a new standard for quality and cost effectiveness. They are compact, powerful and make ergonomic working possible.

Type of dies

239-xx

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

237L

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
96	118
103	118
106	126
111	126
116	126
121	126
126	126
131	126

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
96	118
103	118
106	126
111	126
116	126
121	126
126	126
131	126

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
96	118
103	118
106	126
111	126
116	126
121	126
126	126
131	126

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

ø mm	-mm-
54	118
57	118
62	118
67	118
71	118
74	118
78	118
84	118
86	118
90	118
96	118
103	118
106	126
111	126
116	126
121	126
126	126
131	126
