HM 245 Uniflex

AutomotiveCrimper for Automotive hoses

Помощь специалиста:

(044) 205-38-70 (067) 353-07-08 Валерий (067) 605 91 82 Алексей (067) 551-34-37 Василий (067) 693-30-67 Татьяна (067) 627-62-77 Виктор

Свойства: HM 245 Uniflex

First Class Advantages:

Без смазки

Эргономичность

Тихая работа

Маркировка CE

2 года гарантии

Описание изделия: HM 245 Uniflex

Modell:	HM 245
Crimp force (kN/Ton)	750 / 75
Greaseless
Control	Control C.2 + Touch
SAE R 12 / 4SP* 1 piece fitting	1"
SAE R 12 / 4SP* 2 piece fitting	3/4"
Industrial*	1"
Max. Crimp range	70 mm
Opening	75 mm
Opening without dies	105 mm
Speed (mm/sec.) Close Crimp Open	27 5 30
Noise level (dBA)	53
Drive	4 kW
Oil	100 l
L x W x H Machine (mm	1020 x 950 x 1450
Weight	610 Kg
штампованные/час	Calculate ►

Варианты продукта: HM 245 Uniflex

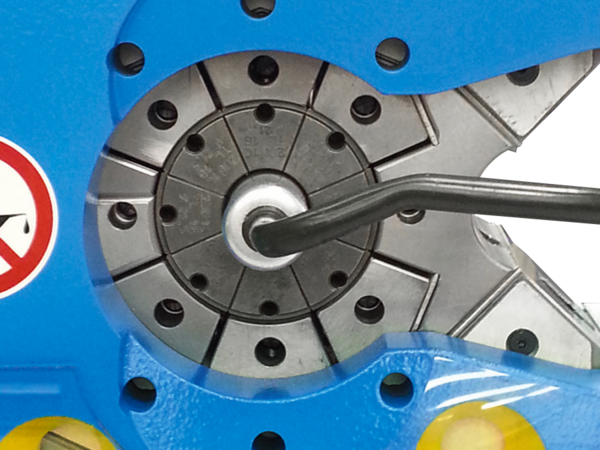

This hydraulic crimper with patented C-form pressing tool facilitates the radial infeeding of complex hose assemblies. It is particularly well suited for hoses used in automotive manufacturing.

Type of dies

239-xx

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100

ø mm	-mm-
6,8	50
9	50
10	50
12	50
14	50
16	65
17	65
19	65
20	65
22	65
24	65
26	65
28	80
32	80
36	80
40	80
44	80
47	100
50	100
54	100
57	100
62	100
